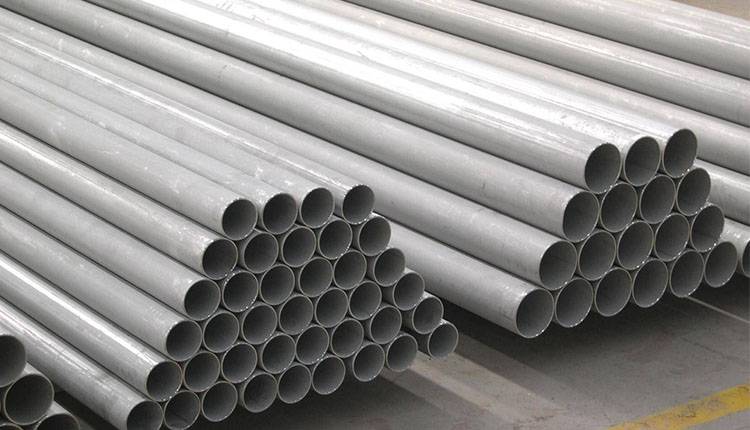

Nickel Alloy 200 / 201 Pipe & Tube Manufacturer, Supplier, and Stockists in India

Samay Steel and Engineering Co. is a prominent entity in Mumbai, India, known for its expertise as a manufacturer, stockist, and exporter of a comprehensive range of steel products, including high-quality Nickel Alloy 200 / 201 Pipe & Tube. With a strong commitment to quality and a broad distribution network, they cater to diverse industrial requirements across the globe. Their specialization in nickel alloys, among other materials, highlights their capability to deliver products suitable for demanding environments.

Nickel Alloy 200 and Nickel Alloy 201 are commercially pure wrought nickel materials, primarily differing in their carbon content. Nickel 200 has a maximum carbon content of 0.15%, while Nickel 201 has a lower carbon content of 0.02% max. This lower carbon in Nickel 201 is crucial for applications involving exposure to temperatures above 315°C (600°F), as it prevents graphitization and subsequent embrittlement. Both alloys exhibit excellent mechanical properties, including high ductility and malleability, along with good thermal and electrical conductivity.

A key characteristic of Nickel Alloy 200 / 201 Pipe & Tube is their exceptional corrosion resistance. They demonstrate superior resistance to various reducing chemicals and are unexcelled in their resistance to caustic alkalis, even in high concentrations and molten states. This makes them ideal for maintaining product purity in industries handling foods, synthetic fibers, and caustic solutions. While excelling in reducing environments, they can also perform well in oxidizing conditions where a passive oxide film can form.

These pipes and tubes find widespread application in a multitude of industries due to their robust properties. Common sectors include chemical and petrochemical processing, oil and gas, power generation, pharmaceuticals, food processing, and marine/offshore engineering. Specific applications range from caustic evaporators and chemical shipping drums to heat exchangers, electronic components, and even aerospace and missile parts. Their ability to withstand thermal cycling and shock further enhances their utility in high-temperature settings.

Nickel Alloy 200 / 201 Pipe & Tube Specifications

Property	Nickel Alloy 200	Nickel Alloy 201
UNS Number	N02200	N02201
Standard Specification	ASTM B161, ASTM B725, ASTM B622 (seamless, welded)	ASTM B161, ASTM B725, ASTM B622
Type	Seamless / Welded / ERW / Fabricated Tubes	Seamless / Welded / ERW / Fabricated Tubes
Size Range	1/8" to 12" NB (Nominal Bore)	1/8" to 12" NB
Thickness	0.35 mm – 6.35 mm (SCH 5 to SCH XXS)	0.35 mm – 6.35 mm (SCH 5 to SCH XXS)
Form	Round, Square, Rectangular, Coil, U Shape	Round, Square, Rectangular, Coil, U Shape
Melting Point	1446°C (2635°F)	1446°C (2635°F)
Density	8.89 g/cm³	8.89 g/cm³
Tensile Strength	≥ 380 MPa (55 ksi)	≥ 380 MPa (55 ksi)
Yield Strength (0.2%)	≥ 105 MPa (15 ksi)	≥ 103 MPa (15 ksi)
Elongation	≥ 45%	≥ 45%
Corrosion Resistance	Excellent in reducing and neutral media	Excellent with better performance in caustic conditions
Temperature Range	Up to 315°C (600°F)	Up to 650°C (1200°F) due to low carbon
Magnetism	Non-magnetic	Non-magnetic
Standards	ASTM, ASME, DIN, ISO, EN	ASTM, ASME, DIN, ISO, EN

Mechanical Properties of Nickel Alloy 200 / 201 Pipe & Tube

Property	Nickel 200 (UNS N02200)	Nickel 201 (UNS N02201)
Tensile Strength (min)	380 MPa (55 ksi)	380 MPa (55 ksi)
Yield Strength at 0.2% offset (min)	105 MPa (15 ksi)	103 MPa (15 ksi)
Elongation (min in 2")	45%	45%
Hardness (Brinell max)	110 HB	110 HB
Modulus of Elasticity	207 GPa (30 x 10³ ksi)	207 GPa (30 x 10³ ksi)
Poisson’s Ratio	0.31	0.31
Melting Point	1446 °C (2635 °F)	1446 °C (2635 °F)
Impact Strength (Charpy V-notch)	High (Good ductility at low temps)	High (Better suited for high temp use)
Creep Resistance	Moderate	Better than Alloy 200 (low carbon)

Types of Pipes and Tubes
