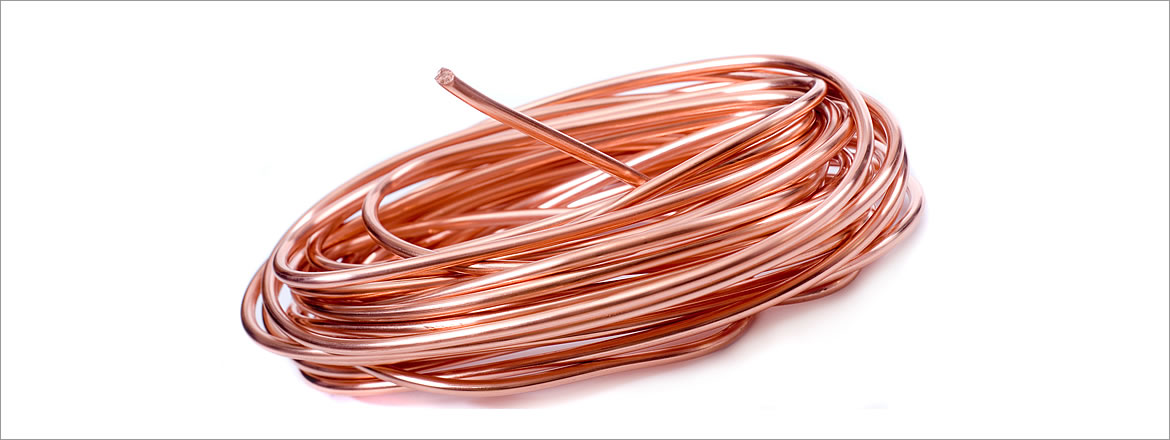

Beryllium Copper Wire Manufacturer, Supplier, and Stockists in India

Beryllium copper wire is a unique alloy that combines the strength of copper with the hardness of beryllium, making it ideal for various industrial applications. This wire is widely used in electrical connectors, switches, and relays due to its excellent conductivity and resistance to wear. The alloy's ability to maintain its mechanical properties at elevated temperatures further enhances its utility in demanding environments, such as aerospace and military applications. As a result, beryllium copper wire plays a critical role in ensuring the reliability and performance of a wide range of electronic devices and components.

One of the standout properties of beryllium copper wire is its high tensile strength, which can exceed 1,000 MPa depending on the heat treatment process. This exceptional strength allows for thinner wire gauges to be used without compromising performance, leading to more compact and lightweight designs. Furthermore, beryllium copper exhibits excellent fatigue resistance, making it suitable for applications that involve repeated stress cycles. Coupled with good thermal and electrical conductivity, this alloy is an optimal choice for applications requiring both durability and performance.

The advantages of beryllium copper wire extend beyond its mechanical properties. Its corrosion resistance is noteworthy, especially in harsh environments, including marine and chemical settings. This resistance ensures that devices made from this alloy maintain functionality and longevity even when exposed to challenging conditions. Additionally, beryllium copper can be easily fabricated and machined, allowing manufacturers to create intricate designs and components with precision, which is essential in modern industrial manufacturing.

In summary, beryllium copper wire is a versatile material that combines strength, conductivity, and resistance to wear and corrosion. Its applications span various industries, including automotive, aerospace, and telecommunications. As manufacturers continue to seek materials that can withstand demanding operational conditions while ensuring reliability and efficiency, beryllium copper wire will remain a vital component in the industrial landscape.

Specification Table

Specification	Beryllium Copper Wire
Material Grade	Beryllium Copper Wire
Standards	ASTM B163, ASME SB165
Form	Coils, Rods
Size Range	0.1 mm – 5 mm
Wall Thickness	0.5 mm – 20 mm
Length	Single Random, Double Random
Density	8.44 g/cm³
Tensile Strength	965 MPa
Yield Strength (0.2% Offset)	690 MPa
Elongation	30%
Hardness	Rockwell B90
Melting Point	1350°C
Corrosion Resistance	Excellent in marine & chemical environments
Applications	Oil & Gas, Chemical Processing, Marine
Exported To	UAE, USA, Canada, Germany, Africa

Chemical Properties Table

Chemical Element	Beryllium Copper Wire
Nickel (Ni)	0.5%
Chromium (Cr)	0.5%
Iron (Fe)	0.2%
Manganese (Mn)	0.3%
Carbon (C)	0.05%
Silicon (Si)	0.1%
Other elements	Beryllium (Be) 1.8%, Copper (Cu) Balance

Mechanical Properties Table

Mechanical Property	Beryllium Copper Wire
Tensile Strength (MPa)	965
Yield Strength (0.2% Offset, MPa)	690
Elongation (%)	30
Hardness (Rockwell)	B90
Modulus of Elasticity (GPa)	110
Poisson's Ratio	0.31
Shear Modulus (GPa)	48
Density (g/cm³)	8.44
Reduction of Area (%)	40
Ultimate Tensile Strength (MPa)	1100
