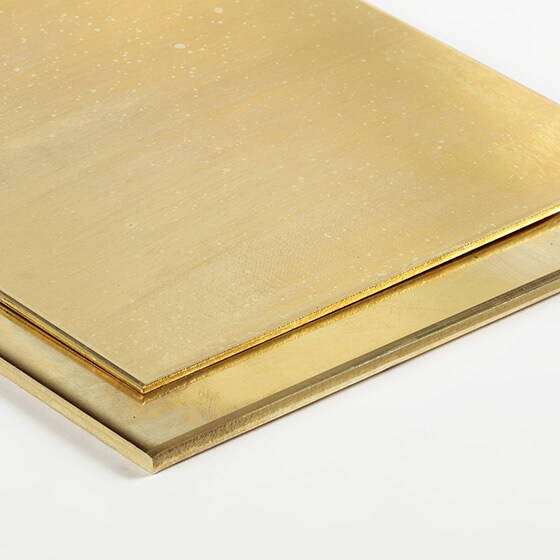

Brass Plate Manufacturer, Supplier, and Stockists in India

Brass plates are widely utilized in industrial manufacturing due to their excellent combination of mechanical properties, corrosion resistance, and aesthetic appeal. They are commonly used in applications such as electrical connectors, plumbing fittings, and marine hardware because of their ability to withstand harsh environmental conditions while maintaining structural integrity. The versatility of brass plates makes them an ideal choice for various sectors, including automotive, aerospace, and construction, where reliability and durability are paramount.

One of the key properties of brass plates is their outstanding corrosion resistance, particularly in marine and chemical environments. This quality is attributed to the copper and zinc content in brass, which forms a protective patina that inhibits further corrosion. Additionally, brass plates exhibit good machinability, allowing them to be easily shaped and fabricated into complex components. This property is essential for manufacturers who require precision-engineered parts that meet stringent specifications.

Another notable advantage of brass plates is their excellent thermal and electrical conductivity, making them suitable for applications that require efficient heat dissipation or electrical connections. The high ductility of brass allows it to be easily formed into intricate shapes without cracking, which is particularly beneficial in manufacturing processes such as stamping and bending. This malleability, combined with strength, ensures that brass plates can endure significant stress and strain during operation.

In summary, the unique properties and advantages of brass plates, including their corrosion resistance, machinability, and conductivity, make them a preferred material in industrial manufacturing. Their ability to perform reliably in diverse environments and applications not only enhances the performance of the end products but also extends their lifespan, thereby providing significant cost savings for manufacturers.

Specification Table

Specification	Brass Plate
Material Grade	C26000 (Yellow Brass)
Standards	ASTM B36, ASTM B455
Form	Plates, Sheets
Size Range	0.5 mm – 100 mm thickness
Wall Thickness	0.5 mm – 20 mm
Length	Single Random, Double Random
Density	8.44 g/cm³
Tensile Strength	350 MPa
Yield Strength (0.2% Offset)	220 MPa
Elongation	30%
Hardness	Rockwell B85
Melting Point	900°C
Corrosion Resistance	Excellent in marine & chemical environments
Applications	Oil & Gas, Chemical Processing, Marine
Exported To	UAE, USA, Canada, Germany, Africa

Chemical Properties Table

Chemical Element	Brass Plate
Nickel (Ni)	0.5%
Chromium (Cr)	0.1%
Iron (Fe)	0.2%
Manganese (Mn)	0.05%
Carbon (C)	0.01%
Silicon (Si)	0.1%
Other elements	Lead (Pb) 2%, Zinc (Zn) 60%

Mechanical Properties Table

Mechanical Property	Brass Plate
Tensile Strength (MPa)	350
Yield Strength (0.2% Offset, MPa)	220
Elongation (%)	30
Hardness (Rockwell)	B85
Modulus of Elasticity (GPa)	100
Poisson's Ratio	0.33
Shear Modulus (GPa)	40
Density (g/cm³)	8.44
Reduction of Area (%)	50
Ultimate Tensile Strength (MPa)	450
