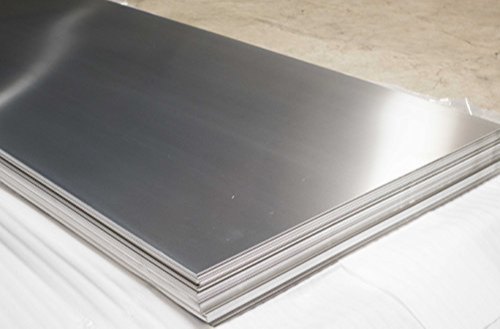

Duplex Steel S32205 Sheet Plate Manufacturer, Supplier, and Stockists in India

Duplex Steel S32205 Sheet Plate is widely recognized for its unique combination of properties that make it an ideal material for various industrial applications. This alloy features a dual-phase microstructure, consisting of both austenite and ferrite, which provides excellent strength and toughness. Its high resistance to corrosion, particularly in chloride environments, makes it a preferred choice in industries such as oil and gas, chemical processing, and marine applications. The versatility of Duplex Steel S32205 Sheet Plate also allows it to be employed in manufacturing components such as heat exchangers, pressure vessels, and piping systems.

The properties of Duplex Steel S32205 Sheet Plate are what truly set it apart from other stainless steels. With a tensile strength of approximately 965 MPa and a yield strength of around 690 MPa, it offers superior mechanical performance. Additionally, its elongation percentage of 30% ensures that the material can withstand significant deformation before failure, making it suitable for demanding applications. The hardness of Duplex Steel S32205 is typically measured at Rockwell B90, providing a balance between strength and ductility.

One of the primary advantages of using Duplex Steel S32205 Sheet Plate is its excellent corrosion resistance, particularly in environments that contain chlorides, such as seawater and various chemicals. This property significantly extends the lifespan of components made from this material, reducing maintenance costs and downtime. Moreover, its high resistance to stress corrosion cracking and pitting makes it an optimal choice for industries that require reliable performance under harsh conditions. The cost-effectiveness of Duplex Steel S32205 also contributes to its popularity, as it often offers a lower lifecycle cost compared to other high-performance alloys.

In summary, Duplex Steel S32205 Sheet Plate is a highly versatile and robust material that excels in various industrial applications. Its unique combination of mechanical and corrosion-resistant properties makes it suitable for demanding environments, while its cost-effectiveness ensures that it remains a preferred choice among manufacturers. As industries continue to evolve and face new challenges, Duplex Steel S32205 will undoubtedly play a pivotal role in the development of advanced manufacturing solutions.

Specification Table

Specification	Duplex Steel S32205 Sheet Plate
Material Grade	Duplex Steel S32205 Sheet Plate
Standards	ASTM A240, ASME SA240
Form	Sheets, Plates
Size Range	1000 mm x 2000 mm to 2000 mm x 6000 mm
Wall Thickness	1 mm – 25 mm
Length	Single Random, Double Random
Density	7.8 g/cm³
Tensile Strength	965 MPa
Yield Strength (0.2% Offset)	690 MPa
Elongation	30%
Hardness	Rockwell B90
Melting Point	1350°C
Corrosion Resistance	Excellent in marine & chemical environments
Applications	Oil & Gas, Chemical Processing, Marine
Exported To	UAE, USA, Canada, Germany, Africa

Chemical Properties Table

Chemical Element	Duplex Steel S32205 Sheet Plate
Nickel (Ni)	5.5 - 7.5%
Chromium (Cr)	22 - 23%
Iron (Fe)	Balance
Manganese (Mn)	1.5%
Carbon (C)	0.03%
Silicon (Si)	0.8%
Other elements	Mo: 3.0% max, N: 0.14 - 0.20%

Mechanical Properties Table

Mechanical Property	Duplex Steel S32205 Sheet Plate
Tensile Strength (MPa)	965
Yield Strength (0.2% Offset, MPa)	690
Elongation (%)	30
Hardness (Rockwell)	B90
Modulus of Elasticity (GPa)	200
Poisson's Ratio	0.3
Shear Modulus (GPa)	80
Density (g/cm³)	7.8
Reduction of Area (%)	50
Ultimate Tensile Strength (MPa)	1100
