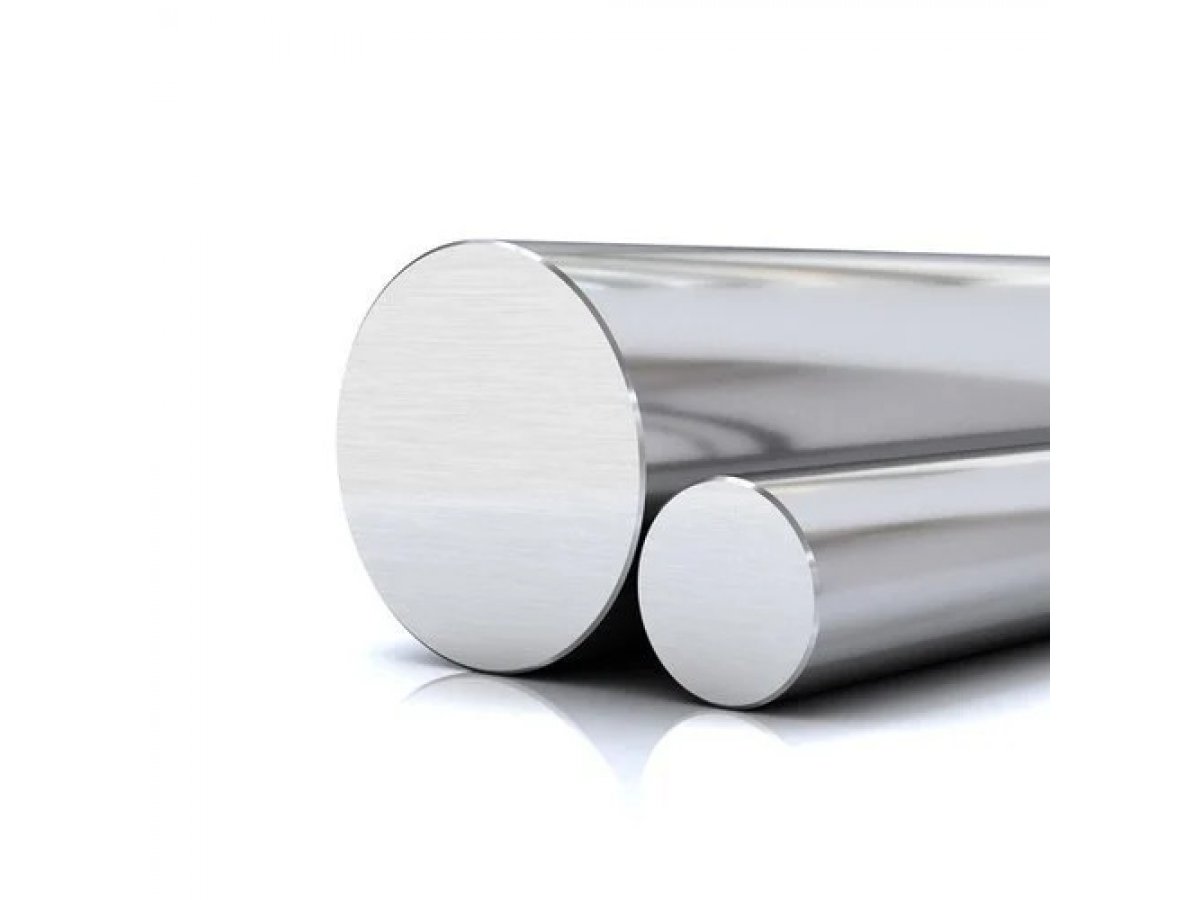

Nimonic Bar Manufacturer, Supplier, and Stockists in India

Nimonic Bar is a high-performance alloy primarily composed of nickel and chromium, known for its exceptional resistance to high-temperature oxidation and corrosion. This material is commonly utilized in industries that operate under extreme conditions, such as aerospace, power generation, and chemical processing. Its ability to maintain structural integrity at elevated temperatures makes it ideal for components like turbine blades, combustion chambers, and heat exchangers, where reliability is paramount.

One of the key properties of Nimonic Bar is its excellent mechanical strength, even at high temperatures. The alloy exhibits high tensile and yield strengths, which ensure that components can withstand significant stresses without deforming. Additionally, Nimonic Bar offers good ductility, allowing it to be formed and machined into complex shapes needed for various applications. Its thermal stability further enhances its usability in environments that experience rapid temperature fluctuations.

The advantages of using Nimonic Bar in industrial manufacturing extend beyond its mechanical properties. The alloy's superior resistance to oxidation and sulfidation allows it to perform effectively in corrosive environments, reducing the need for frequent maintenance and replacement. This characteristic is particularly beneficial in the oil and gas industry, where equipment is often exposed to harsh chemicals and extreme temperatures. Furthermore, Nimonic Bar is known for its weldability, enabling easier fabrication and integration into existing systems.

In summary, Nimonic Bar stands out as a versatile and durable material suited for high-performance applications in demanding industries. Its unique combination of mechanical strength, thermal stability, and corrosion resistance makes it an ideal choice for components that require reliability and longevity. As industrial demands continue to evolve, the role of Nimonic Bar in manufacturing processes will remain critical to ensuring efficiency and safety in operations.

Specification Table

Specification	Nimonic Bar
Material Grade	Nimonic 75
Standards	ASTM B168, ASME SB168
Form	Bars
Size Range	10 mm to 100 mm diameter
Wall Thickness	N/A
Length	Single Random, Double Random
Density	8.3 g/cm³
Tensile Strength	965 MPa
Yield Strength (0.2% Offset)	690 MPa
Elongation	30%
Hardness	Rockwell B90
Melting Point	1350°C
Corrosion Resistance	Excellent in marine & chemical environments
Applications	Aerospace, Oil & Gas, Chemical Processing
Exported To	UAE, USA, Canada, Germany, Africa

Chemical Properties Table

Chemical Element	Nimonic Bar
Nickel (Ni)	50%
Chromium (Cr)	20%
Iron (Fe)	15%
Manganese (Mn)	1%
Carbon (C)	0.15%
Silicon (Si)	0.50%
Other elements	Cobalt (Co) 8%, Titanium (Ti) 3%

Mechanical Properties Table

Mechanical Property	Nimonic Bar
Tensile Strength (MPa)	965
Yield Strength (0.2% Offset, MPa)	690
Elongation (%)	30
Hardness (Rockwell)	B90
Modulus of Elasticity (GPa)	200
Poisson's Ratio	0.31
Shear Modulus (GPa)	80
Density (g/cm³)	8.3
Reduction of Area (%)	50
Ultimate Tensile Strength (MPa)	1100
