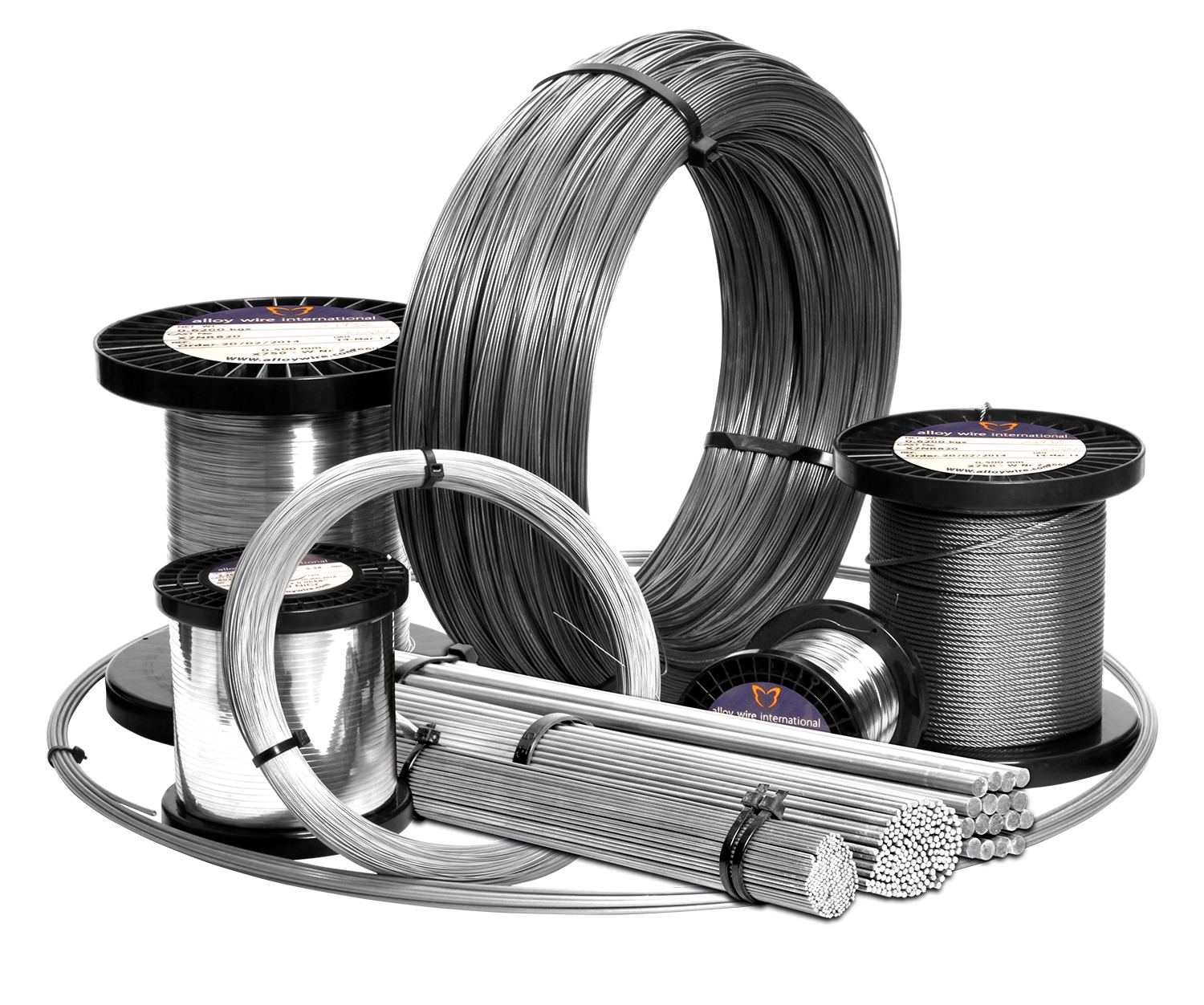

Nimonic Wire Manufacturer, Supplier, and Stockists in India

Nimonic Wire, a nickel-chromium alloy, is primarily utilized in high-temperature applications, making it a preferred choice in industries such as aerospace, automotive, and power generation. Its exceptional resistance to oxidation and corrosion at elevated temperatures ensures reliability and longevity in critical components. This wire is commonly employed in the manufacturing of turbine blades, combustion chambers, and heat exchangers, where operational conditions demand materials that can withstand extreme environments without degrading.

The properties of Nimonic Wire are tailored for high-performance applications. With a high melting point and excellent mechanical strength, Nimonic Wire maintains structural integrity even under severe thermal stress. Its ability to retain strength at high temperatures, coupled with good ductility, allows for complex geometries and intricate designs that are often required in advanced manufacturing processes. The alloy's composition contributes to its unique properties, making it a versatile choice for various applications requiring high-performance materials.

One of the significant advantages of using Nimonic Wire is its superior fatigue resistance, which is critical in applications where components undergo cyclic loading. This characteristic, combined with its outstanding creep resistance, allows Nimonic Wire to perform effectively over extended periods without failure. Additionally, its excellent weldability and machinability further enhance its usability in complex manufacturing processes. As industries continue to push the boundaries of technology, Nimonic Wire stands out as a reliable and effective solution for demanding applications.

In summary, Nimonic Wire is not just a specialized material; it is a vital component in the advancement of modern industrial manufacturing. Its unique properties, including high-temperature stability, corrosion resistance, and mechanical strength, make it indispensable in sectors that demand performance and reliability. As industries evolve and require materials that can withstand increasingly harsh conditions, Nimonic Wire will continue to be a cornerstone in the development of innovative solutions.

Specification Table

Specification	Nimonic Wire
Material Grade	Nimonic 75
Standards	ASTM B163, ASME SB165
Form	Wire
Size Range	0.5 mm – 10 mm
Wall Thickness	N/A
Length	Single Random
Density	8.44 g/cm³
Tensile Strength	965 MPa
Yield Strength (0.2% Offset)	690 MPa
Elongation	30%
Hardness	Rockwell B90
Melting Point	1350°C
Corrosion Resistance	Excellent in marine & chemical environments
Applications	Aerospace, Gas Turbines, Chemical Processing
Exported To	UAE, USA, Canada, Germany, Japan

Chemical Properties Table

Chemical Element	Nimonic Wire
Nickel (Ni)	53%
Chromium (Cr)	20%
Iron (Fe)	17%
Manganese (Mn)	1%
Carbon (C)	0.15%
Silicon (Si)	0.5%
Other elements	Cobalt (Co) 8%, Titanium (Ti) 2%, Aluminium (Al) 1%

Mechanical Properties Table

Mechanical Property	Nimonic Wire
Tensile Strength (MPa)	965
Yield Strength (0.2% Offset, MPa)	690
Elongation (%)	30
Hardness (Rockwell)	B90
Modulus of Elasticity (GPa)	210
Poisson's Ratio	0.3
Shear Modulus (GPa)	80
Density (g/cm³)	8.44
Reduction of Area (%)	40
Ultimate Tensile Strength (MPa)	1100
