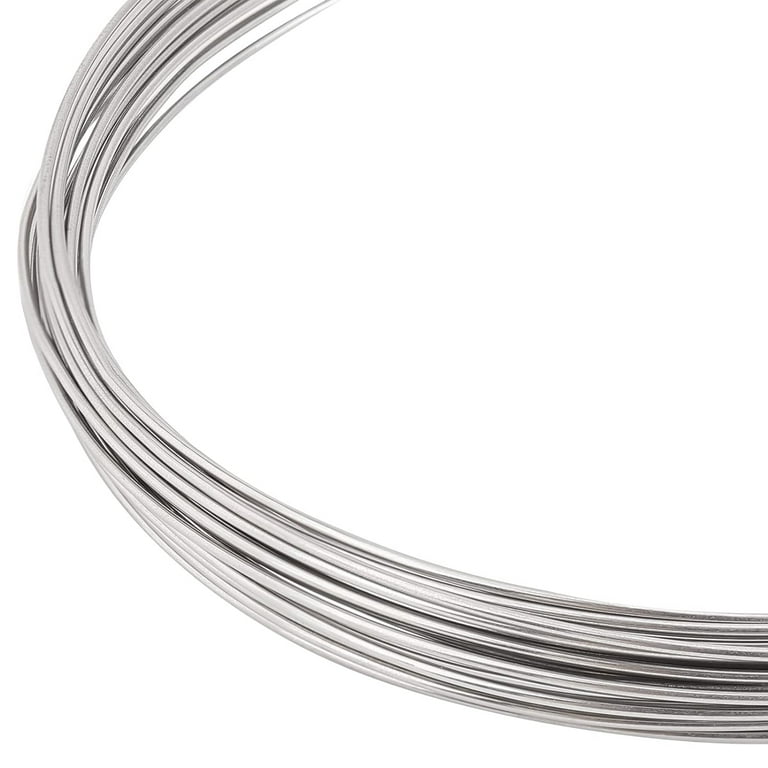

Niobium Wire Manufacturer, Supplier, and Stockists in India

Niobium wire is a highly versatile material widely utilized in industrial manufacturing due to its exceptional properties. One of its primary applications is in the production of superconducting magnets, which are essential components in medical imaging technologies such as Magnetic Resonance Imaging (MRI) machines. Additionally, niobium wire is utilized in the aerospace industry for manufacturing components that require high-strength materials capable of withstanding extreme temperatures. Its unique combination of strength and lightweight characteristics makes it an ideal choice for applications requiring both durability and efficiency.

The properties of niobium wire contribute significantly to its effectiveness in various industrial applications. Niobium exhibits excellent corrosion resistance, even in harsh environments, which is particularly valuable in chemical processing and marine applications. The material's high melting point, approximately 2477°C, allows it to maintain structural integrity under extreme thermal conditions. Furthermore, niobium wire possesses remarkable ductility and malleability, enabling it to be drawn into thin wires without compromising its mechanical properties, making it suitable for intricate designs and applications.

One of the primary advantages of niobium wire is its high tensile strength, which can exceed 965 MPa, providing exceptional load-bearing capabilities. This strength, combined with a yield strength of around 690 MPa, allows for the creation of lightweight components that do not sacrifice performance. Additionally, niobium wire's low thermal expansion coefficient minimizes dimensional changes under temperature fluctuations, ensuring stability in critical applications. The material's resistance to embrittlement further enhances its reliability, making it a preferred choice for high-performance environments.

In summary, niobium wire stands out in the industrial manufacturing landscape due to its unique blend of properties and advantages. Its applications span various sectors, including aerospace, medical, and chemical processing, where performance and reliability are paramount. As industries continue to seek advanced materials that meet stringent requirements, niobium wire will undoubtedly play a crucial role in driving innovation and efficiency in manufacturing processes.

Specification Table

Specification	Niobium Wire
Material Grade	Niobium Wire
Standards	ASTM B393, ASME SB393
Form	Wire
Size Range	0.1 mm – 10 mm
Wall Thickness	0.1 mm – 5 mm
Length	Single Random, Double Random
Density	8.57 g/cm³
Tensile Strength	965 MPa
Yield Strength (0.2% Offset)	690 MPa
Elongation	30%
Hardness	Rockwell B90
Melting Point	2477°C
Corrosion Resistance	Excellent in marine & chemical environments
Applications	Aerospace, Medical Imaging, Chemical Processing
Exported To	USA, Canada, Germany, Japan, Australia

Chemical Properties Table

Chemical Element	Niobium Wire
Nickel (Ni)	0.01%
Chromium (Cr)	0.02%
Iron (Fe)	0.05%
Manganese (Mn)	0.01%
Carbon (C)	0.01%
Silicon (Si)	0.01%
Other elements	Tantalum 0.1%, Oxygen 0.03%

Mechanical Properties Table

Mechanical Property	Niobium Wire
Tensile Strength (MPa)	965
Yield Strength (0.2% Offset, MPa)	690
Elongation (%)	30
Hardness (Rockwell)	B90
Modulus of Elasticity (GPa)	105
Poisson's Ratio	0.39
Shear Modulus (GPa)	39
Density (g/cm³)	8.57
Reduction of Area (%)	50
Ultimate Tensile Strength (MPa)	1100
