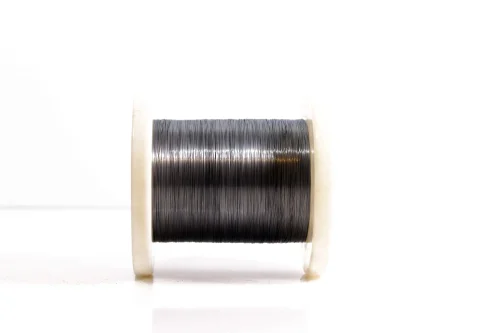

Permalloy Wire Manufacturer, Supplier, and Stockists in India

Permalloy wire, an alloy primarily composed of nickel and iron, is widely recognized for its exceptional magnetic properties, making it highly suitable for various industrial manufacturing applications. This wire is predominantly utilized in the production of magnetic cores for transformers, inductors, and magnetic shielding devices. The unique characteristics of Permalloy wire allow it to achieve high permeability and low coercivity, which are essential for efficient energy transfer and minimal energy loss in electrical applications.

One of the most significant properties of Permalloy wire is its high magnetic permeability, which can exceed 100,000 μ, making it one of the most effective materials for magnetic applications. In addition to its magnetic properties, Permalloy offers excellent mechanical strength and ductility, which enable it to withstand various manufacturing processes without compromising its performance. The material is also resistant to oxidation, adding to its durability in various environments, including high-temperature and corrosive settings.

The advantages of using Permalloy wire in industrial manufacturing extend beyond its magnetic features. Its ability to be easily processed into various shapes and sizes allows manufacturers to customize products to meet specific requirements. Furthermore, the wire's low hysteresis loss translates to enhanced energy efficiency, which is particularly beneficial in the design of electrical components. As industries increasingly focus on sustainability and energy conservation, the use of Permalloy wire is becoming more prevalent in advanced manufacturing technologies.

In summary, Permalloy wire serves as a critical material in the industrial manufacturing sector, particularly in applications requiring high-performance magnetic properties. Its combination of magnetic efficiency, mechanical strength, and versatility makes it an ideal choice for manufacturers aiming to produce high-quality, energy-efficient components. As demand for innovative electrical solutions continues to grow, the role of Permalloy wire will undoubtedly expand, solidifying its importance in modern manufacturing practices.

Specification Table

Specification	Permalloy Wire
Material Grade	Permalloy Wire
Standards	ASTM B163, ASME SB165
Form	Coils, Wires
Size Range	0.1 mm – 10 mm
Wall Thickness	0.5 mm – 5 mm
Length	Single Random, Double Random
Density	8.50 g/cm³
Tensile Strength	800 MPa
Yield Strength (0.2% Offset)	550 MPa
Elongation	25%
Hardness	Rockwell B80
Melting Point	1400°C
Corrosion Resistance	Good in most environments
Applications	Magnetic cores, transformers, inductors
Exported To	USA, Germany, Japan, China

Chemical Properties Table

Chemical Element	Permalloy Wire
Nickel (Ni)	80%
Chromium (Cr)	0.5%
Iron (Fe)	19%
Manganese (Mn)	0.5%
Carbon (C)	0.02%
Silicon (Si)	0.1%
Other elements	Copper 0.1%

Mechanical Properties Table

Mechanical Property	Permalloy Wire
Tensile Strength (MPa)	800 MPa
Yield Strength (0.2% Offset, MPa)	550 MPa
Elongation (%)	25%
Hardness (Rockwell)	Rockwell B80
Modulus of Elasticity (GPa)	200 GPa
Poisson's Ratio	0.29
Shear Modulus (GPa)	77 GPa
Density (g/cm³)	8.50 g/cm³
Reduction of Area (%)	30%
Ultimate Tensile Strength (MPa)	1000 MPa
