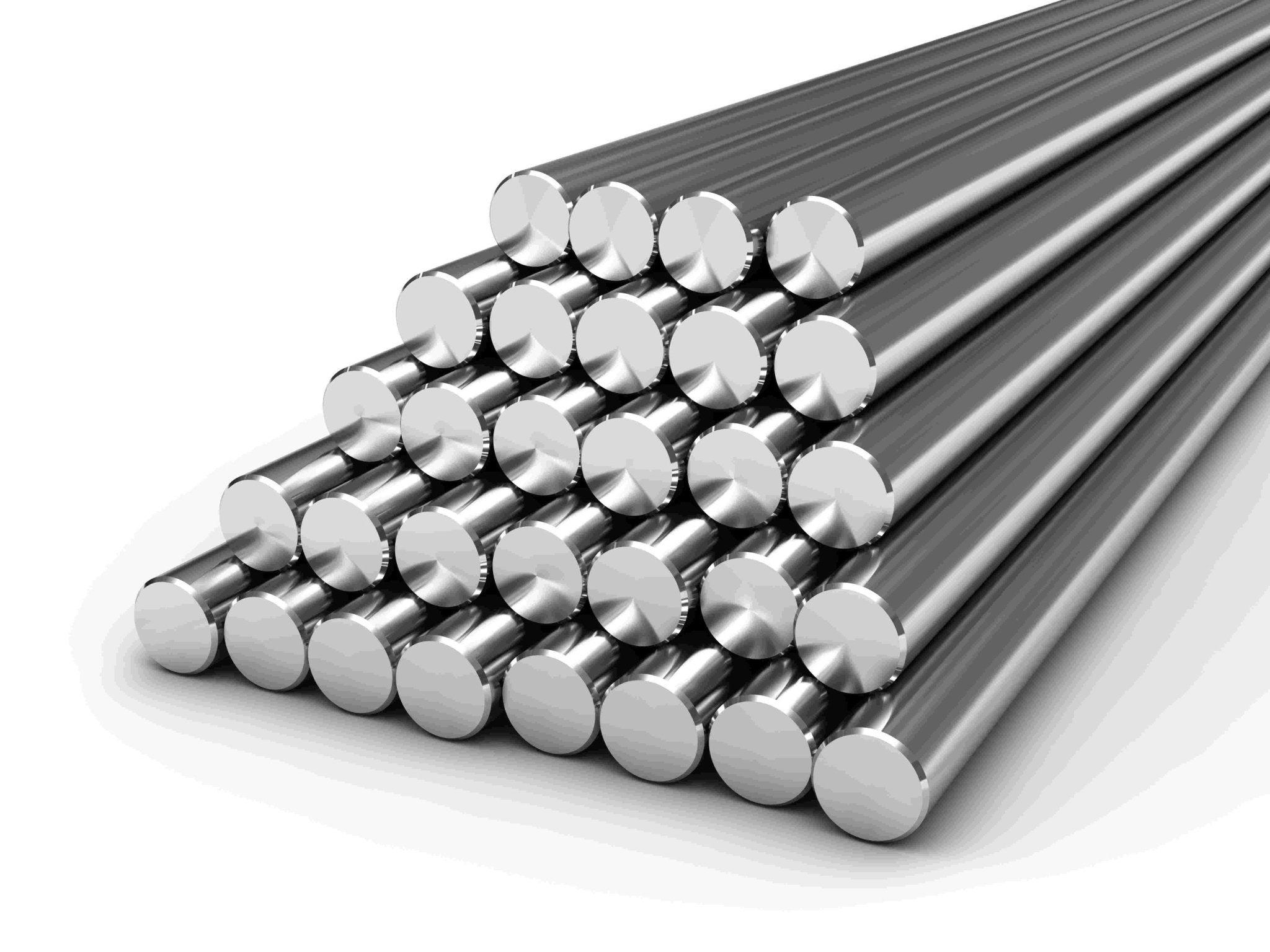

Stainless Steel 316 316L Round Bar Manufacturer, Supplier, and Stockists in India

Stainless Steel 316 and 316L Round Bars are widely utilized in industrial manufacturing due to their superior corrosion resistance and high strength. These materials are particularly effective in environments exposed to harsh chemicals, high temperatures, and saline conditions, making them ideal for applications in marine, oil and gas, and chemical processing industries. The addition of molybdenum in 316 and 316L grades enhances their resistance to pitting and crevice corrosion, ensuring durability and reliability in critical applications.

The mechanical properties of Stainless Steel 316 and 316L Round Bars are exceptional, with a tensile strength of approximately 620 MPa for 316 and 480 MPa for 316L. This allows them to withstand significant loads while maintaining structural integrity. Furthermore, their elongation rates of around 40% indicate a good ductility, allowing for easy fabrication and forming processes. This combination of strength and ductility makes these round bars suitable for a variety of applications, from manufacturing to construction.

One of the key advantages of using Stainless Steel 316 and 316L Round Bars is their outstanding resistance to corrosion. They can withstand aggressive environments, including exposure to chlorides, acids, and other corrosive agents, which is critical for components used in chemical tanks, piping systems, and marine applications. Additionally, these materials offer an aesthetic appeal due to their smooth, polished finish, making them suitable for architectural and ornamental applications.

In summary, the versatility and robustness of Stainless Steel 316 and 316L Round Bars make them a preferred choice in industrial manufacturing. Their excellent mechanical and chemical properties, combined with their ability to perform in extreme conditions, ensure that they meet the rigorous demands of modern engineering applications. As industries continue to evolve, the role of these stainless steel grades remains vital in ensuring safety, reliability, and efficiency in manufacturing processes.

Specification Table

Specification	Stainless Steel 316 316L Round Bar
Material Grade	Stainless Steel 316 316L Round Bar
Standards	ASTM A276, ASTM A479, ASME SA276
Form	Round Bars
Size Range	6 mm to 150 mm
Wall Thickness	N/A
Length	Single Random, Double Random
Density	8.00 g/cm³
Tensile Strength	620 MPa
Yield Strength (0.2% Offset)	290 MPa
Elongation	40%
Hardness	Rockwell B90
Melting Point	1375°C
Corrosion Resistance	Excellent in marine & chemical environments
Applications	Oil & Gas, Chemical Processing, Marine
Exported To	UAE, USA, Canada, Germany, Africa

Chemical Properties Table

Chemical Element	Stainless Steel 316 316L Round Bar
Nickel (Ni)	10.0% - 14.0%
Chromium (Cr)	16.0% - 18.0%
Iron (Fe)	Bal. (approx. 70%)
Manganese (Mn)	2.0% max
Carbon (C)	0.03% max for 316L
Silicon (Si)	1.0% max
Other elements	Molybdenum (Mo) 2.0% - 3.0%, Phosphorus (P) 0.045% max, Sulfur (S) 0.03% max

Mechanical Properties Table

Mechanical Property	Stainless Steel 316 316L Round Bar
Tensile Strength (MPa)	620 MPa
Yield Strength (0.2% Offset, MPa)	290 MPa
Elongation (%)	40%
Hardness (Rockwell)	B90
Modulus of Elasticity (GPa)	200 GPa
Poisson's Ratio	0.3
Shear Modulus (GPa)	77 GPa
Density (g/cm³)	8.00 g/cm³
Reduction of Area (%)	50%
Ultimate Tensile Strength (MPa)	790 MPa
