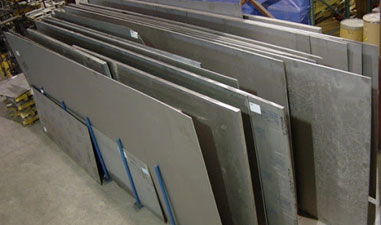

Titanium Grade 5 Plate Manufacturer, Supplier, and Stockists in India

Titanium Grade 5 Plate, also known as Ti-6Al-4V, is one of the most widely used titanium alloys in industrial manufacturing. It comprises 90% titanium, 6% aluminum, and 4% vanadium, which contributes to its exceptional mechanical properties. This alloy finds applications in aerospace, marine, and medical fields due to its high strength-to-weight ratio, making it ideal for components that require durability without adding significant weight. The versatility of Titanium Grade 5 Plate allows it to be used in various forms, including sheets and plates, catering to diverse manufacturing needs.

One of the standout properties of Titanium Grade 5 Plate is its outstanding corrosion resistance, which makes it suitable for harsh environments, including chemical processing and marine applications. The alloy exhibits excellent resistance to pitting and crevice corrosion, ensuring longevity and reliability for components exposed to corrosive substances. Additionally, its ability to withstand extreme temperatures and maintain mechanical integrity makes it a preferred choice for applications that involve high thermal loads.

The advantages of using Titanium Grade 5 Plate extend beyond its mechanical and chemical properties. The alloy is known for its biocompatibility, which is crucial in the medical industry for surgical implants and devices. Its lightweight nature not only reduces the overall weight of the final product but also enhances fuel efficiency in aerospace applications. Moreover, Titanium Grade 5 Plate can be easily fabricated and welded, allowing for complex shapes and designs in manufacturing processes, thus providing greater design flexibility.

In summary, Titanium Grade 5 Plate is an exceptional material that combines high strength, low weight, and excellent corrosion resistance, making it indispensable in various industrial applications. Its unique properties and advantages position it as a material of choice for engineers and manufacturers seeking reliable and durable solutions in demanding environments. As industries continue to advance, the demand for such high-performance materials is expected to grow, further solidifying Titanium Grade 5 Plate's role in modern manufacturing.

Specification Table

Specification	Titanium Grade 5 Plate
Material Grade	Titanium Grade 5 Plate
Standards	ASTM B265, ASME SB265
Form	Plates, Sheets
Size Range	1 mm – 100 mm thickness
Wall Thickness	1 mm – 50 mm
Length	Single Random, Double Random
Density	4.43 g/cm³
Tensile Strength	965 MPa
Yield Strength (0.2% Offset)	880 MPa
Elongation	14%
Hardness	Rockwell B90
Melting Point	1660°C
Corrosion Resistance	Excellent in marine & chemical environments
Applications	Aerospace, Marine, Medical
Exported To	USA, Canada, Germany, UAE, Australia

Chemical Properties Table

Chemical Element	Titanium Grade 5 Plate
Nickel (Ni)	0.2%
Chromium (Cr)	0.1%
Iron (Fe)	0.3%
Manganese (Mn)	0.1%
Carbon (C)	0.1%
Silicon (Si)	0.1%
Other elements	Aluminum (Al) 6%, Vanadium (V) 4%

Mechanical Properties Table

Mechanical Property	Titanium Grade 5 Plate
Tensile Strength (MPa)	965
Yield Strength (0.2% Offset, MPa)	880
Elongation (%)	14
Hardness (Rockwell)	B90
Modulus of Elasticity (GPa)	110
Poisson's Ratio	0.34
Shear Modulus (GPa)	44
Density (g/cm³)	4.43
Reduction of Area (%)	20
Ultimate Tensile Strength (MPa)	1100
