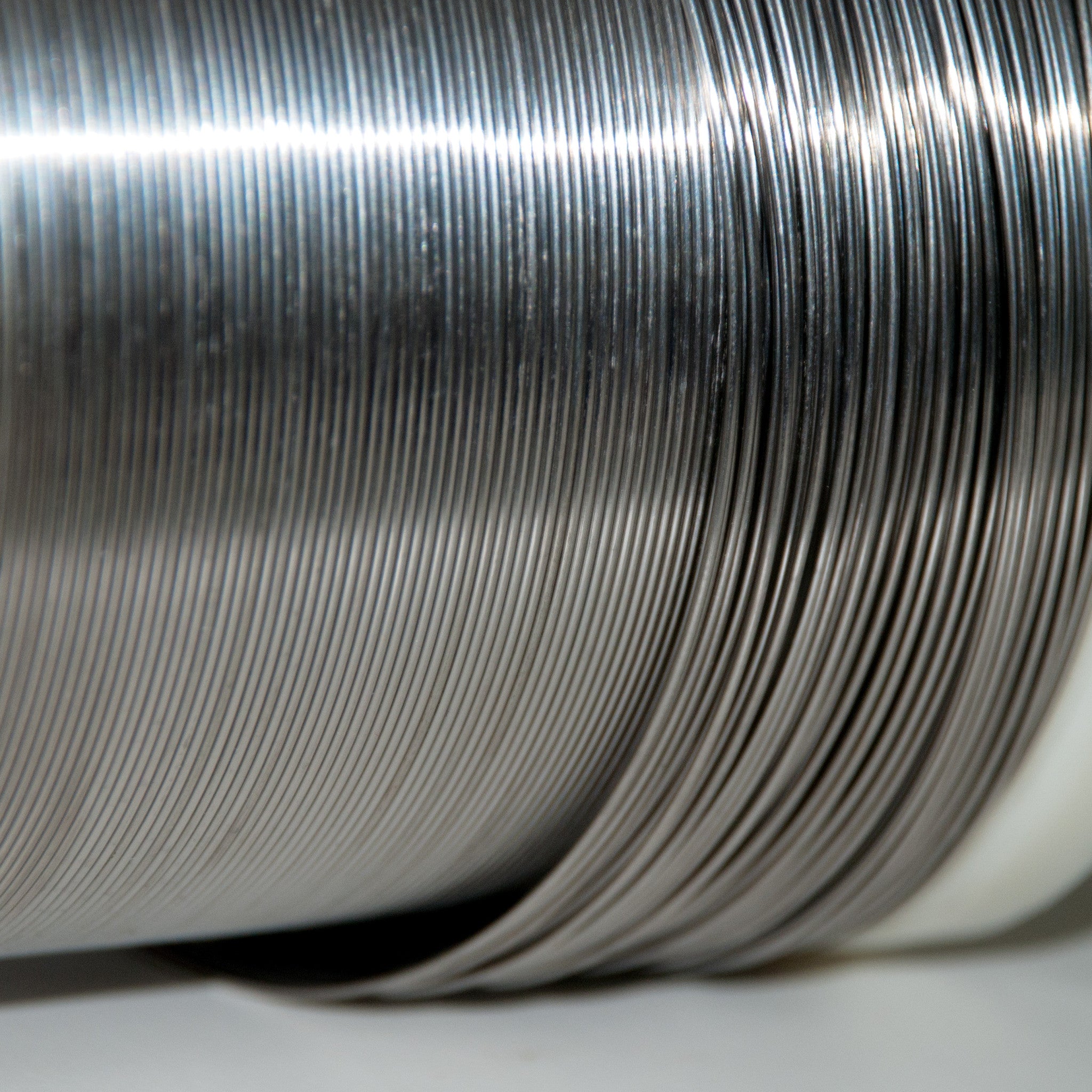

Titanium Grade 5 Wire Manufacturer, Supplier, and Stockists in India

Titanium Grade 5 Wire, also known as Ti-6Al-4V, is a titanium alloy that comprises 90% titanium, 6% aluminum, and 4% vanadium. It is widely utilized in industrial manufacturing due to its exceptional strength-to-weight ratio, making it an ideal choice for applications where both durability and lightweight properties are crucial. This alloy exhibits excellent mechanical properties, including high tensile and yield strength, which allow it to withstand significant loads and stresses, making it suitable for demanding environments such as aerospace, automotive, and medical industries.

One of the standout properties of Titanium Grade 5 Wire is its superior corrosion resistance. It performs exceptionally well in harsh environments, including marine and chemical settings, thanks to the formation of a protective oxide layer on its surface. This property significantly extends the lifespan of components made from this alloy, reducing maintenance costs and increasing reliability in critical applications. The wire can also be easily welded and machined, enhancing its versatility in various manufacturing processes.

In addition to its mechanical and corrosion-resistant properties, Titanium Grade 5 Wire offers excellent biocompatibility, which is particularly valuable in the medical sector for devices such as implants and surgical instruments. Its non-toxic nature ensures that it can be safely used within the human body, promoting its adoption in the healthcare industry. The wire's lightweight nature also contributes to lower overall system weights in applications such as aerospace, where weight savings can lead to increased fuel efficiency and performance.

Furthermore, the manufacturing processes for Titanium Grade 5 Wire have advanced significantly, allowing for tighter tolerances and improved surface finishes. This precision makes it a preferred material for high-performance applications, where quality and reliability are paramount. Overall, Titanium Grade 5 Wire stands out as a multifaceted material that meets the rigorous demands of modern industrial manufacturing, offering a combination of strength, durability, and versatility.

Specification Table

Specification	Titanium Grade 5 Wire
Material Grade	Titanium Grade 5 Wire
Standards	ASTM B348, ASME SB348
Form	Wire
Size Range	0.5 mm – 20 mm
Wall Thickness	N/A
Length	Single Random, Double Random
Density	4.43 g/cm³
Tensile Strength	950 MPa
Yield Strength (0.2% Offset)	880 MPa
Elongation	10% - 15%
Hardness	Rockwell B90
Melting Point	1660°C
Corrosion Resistance	Excellent in marine & chemical environments
Applications	Aerospace, Medical, Marine
Exported To	USA, Canada, Germany, UAE, Australia

Chemical Properties Table

Chemical Element	Titanium Grade 5 Wire
Nickel (Ni)	0.05%
Chromium (Cr)	0.20%
Iron (Fe)	0.30%
Manganese (Mn)	0.10%
Carbon (C)	0.10%
Silicon (Si)	0.10%
Other elements	Aluminum (Al) 6%, Vanadium (V) 4%

Mechanical Properties Table

Mechanical Property	Titanium Grade 5 Wire
Tensile Strength (MPa)	950
Yield Strength (0.2% Offset, MPa)	880
Elongation (%)	12%
Hardness (Rockwell)	B90
Modulus of Elasticity (GPa)	113.8
Poisson's Ratio	0.34
Shear Modulus (GPa)	44.5
Density (g/cm³)	4.43
Reduction of Area (%)	30%
Ultimate Tensile Strength (MPa)	1050
